A More Reliable Connection

A More Secure Connection

A Faster, Flexible Connection

Faster Internet Access

The Total Solution

2344 Multilink IP Bandwidth Aggregation Gateway

increase the reliability, security and speed of connections by up to 3 times!

The 2344 is an intelligent multilink access device that sits between your existing infrastructure and the transport network to transform the reliability, security and bandwidth of your data network between each of your locations. Rather than limiting you to expensive, ill-fitting or inefficient services, the 2344 puts you in the driver’s seat. It lets you use the data communication solution of your choice, using commonly available equipment and services to build a more affordable, flexible, reliable and secure network.

a more reliable connection

The 2344's advanced link management gives you the peace of mind that your network will keep transmitting, even if a link or network service fails. ePipe aggregates multiple connections, instead of risking your entire network to a single fast connection. If a link fails, your data continues to flow over the remaining links. Because the 2344 utilizes all the circuits available, you enjoy all the bandwidth you purchase, instead of wasting money on redundant circuits that are idle most of the time.

The 2344 is provider transparent, allowing you to simultaneously network through two or more service providers and be protected in the event of a provider-wide failure. Even if all broadband services fail, ePipe automatically switches to multiple backup PSTN or ISDN connections, giving you a bullet-proof network.

a more secure connection

The 2344 is fully compatible with your existing security suite. In addition, the 2344's ML-IP software enhances the security of your connections, by fragmenting packets across multiple links (and even multiple networks, if you wish).

Separate, isolated LAN segments (DMZ) can be established for hosting Web, email and e-commerce services, controlling access to these services from both the Internet and internal users.

A faster, more flexible connection

The 2344 enables you to increase bandwidth to match your rapidly increasing networking needs, on demand. Simply add extra low-cost connections as needed to achieve a high speed link at a fraction of the cost of a single high speed connection. ePipe lets you build the bandwidth you need by aggregating up to three xDSL, Cable, T1 or Frame Relay connections (or up to four PSTN, ISDN or wireless connections) into one faster connection. The 2344 achieves this transparently, without intervention by service providers.

The 2344 can aggregate connections through any IP- enabled network, including private IP, public IP (Internet), Frame Relay and ATM networks. This allows organizations with multiple locations to deliver scalable broadband data services to every site today, regardless of the services that are locally available.

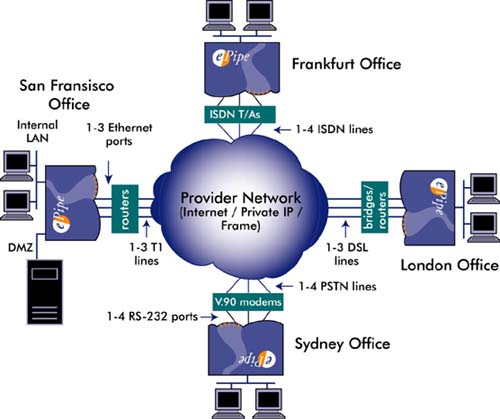

2300 diagram, 36K

faster Internet access

The 2344 also load balances Internet traffic across multiple connections. It balances http, images, streaming audio, video, email, ftp and other Internet session traffic across all available connections. This enables everyone in the organization to enjoy faster Internet access.
